SafetyReel G2 Hose Reels

The CEJN SafetyReel G2 hose reels expand the proven SafetyReel range with larger models designed for longer hose lengths and higher flow capacity. The retractable compressed air and water hose reels provide up to 30 meters of hose, a safe automatic retraction system, and reliable performance. With wall mounted installation, the SafetyReel G2 hose reels are built for safety, durability, and efficiency in demanding industrial environments

Technical Data

SafetyReel G2 – Extended reach, maximum performance

Extended reach

Maximum performance

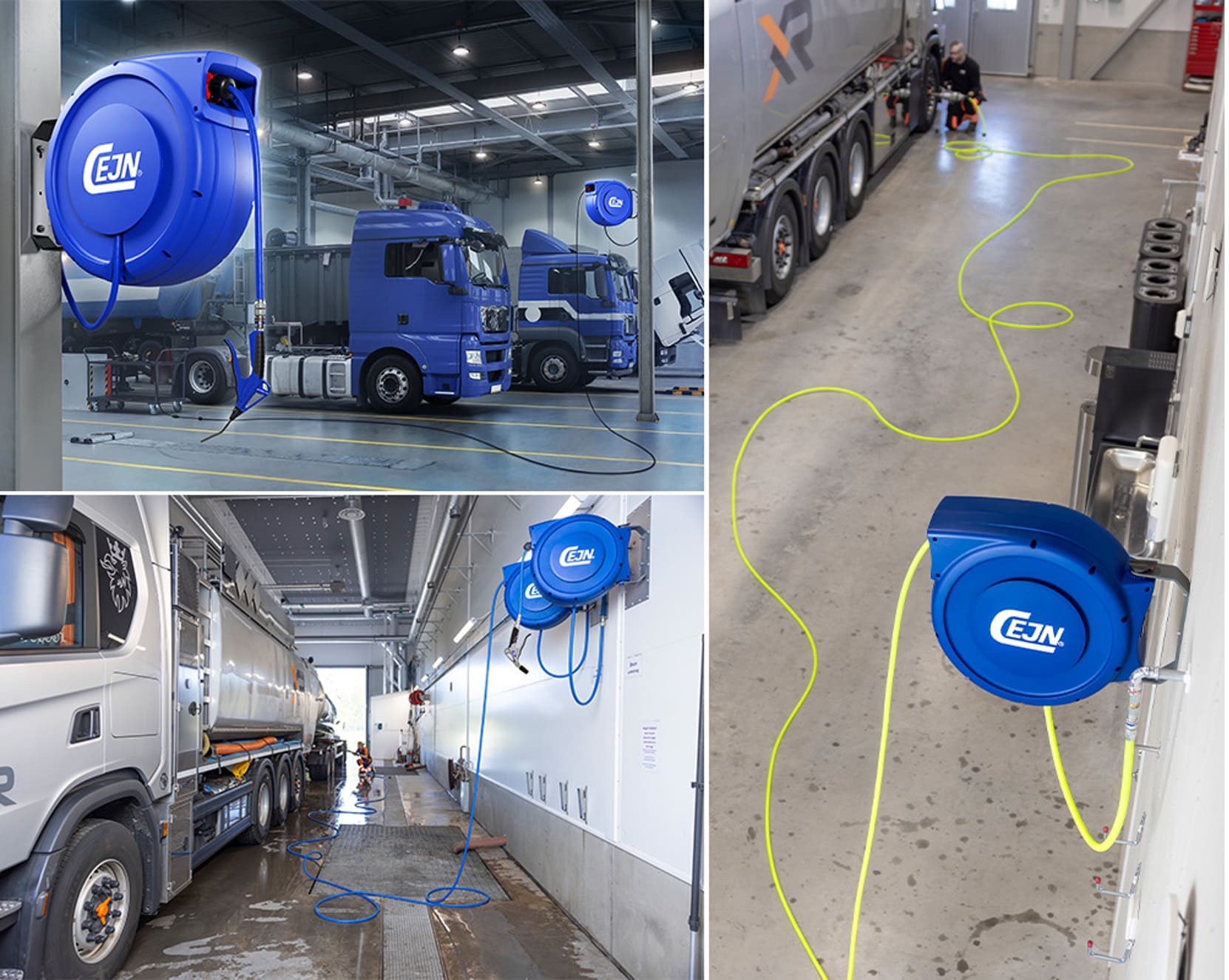

The CEJN SafetyReel G2 is our most advanced hose reel to date, built for demanding environments requiring extended reach and high flow. Supporting hoses up to 30 meters, it delivers increased capacity and features a versatile, multi-purpose hose for both air and fluids, making it ideal for use in:

• Commercial vehicle manufacturers
• Tyre changing centres
• Construction sites
• Heavy vehicle workshop
• Large grinding applications
• Industrial cleaning
• Commercial vehicle wash
• Wash down

To name a few…

Longer reach and higher flow The SafetyReel G2 hose reel is available in three different hose lengths, with the longest measuring as much as 30 meters. This makes it ideal for applications where a longer reach with high flow is needed.	Same hose for both air and fluids You no longer have to choose between a hose for air and fluids—this versatile hose is designed for both. Enjoy the convenience and efficiency of a single solution.	Viscosity brake function The SafetyReel G2 features our innovative, pending-patent Viscosity Brake. This braking system is designed with precision and delivers consistent, reliable performance while providing an unmatched operational lifespan.

Improved latch function The new auto-stop function, with its short built-in locking points, allows the hose to lock instantly whenever you stop pulling, placing it exactly at the distance you need. With just a simple pull, the hose rolls up again.	Easy latch deactivation Don’t want the hose to lock? The new SafetyReel makes latch deactivation very easy. Simply remove the side cover and lift the latch to a non-active position, and you can just as easily activate the latch again.

SafetyReel G2 – How it works

+ all the other SafetyReel features

Of course, the SafetyReel G2 hose reel has the same great benefits as its predecessor, such as slow retraction, precise hose guiding, a tripping-prevention stop ball, and easy installation and maintenance.

Slow retraction for safety

Strong brakes control the spring force for safe and slowed down retraction.

Stop ball that prevents tripping accidents

The more commonly used hard stop ball will roll away and be a risk of strain or tear injuries when stepped on. The soft stop ball of the SafetyReel will collapse to minimise the risk of injuries and tripping accidents.

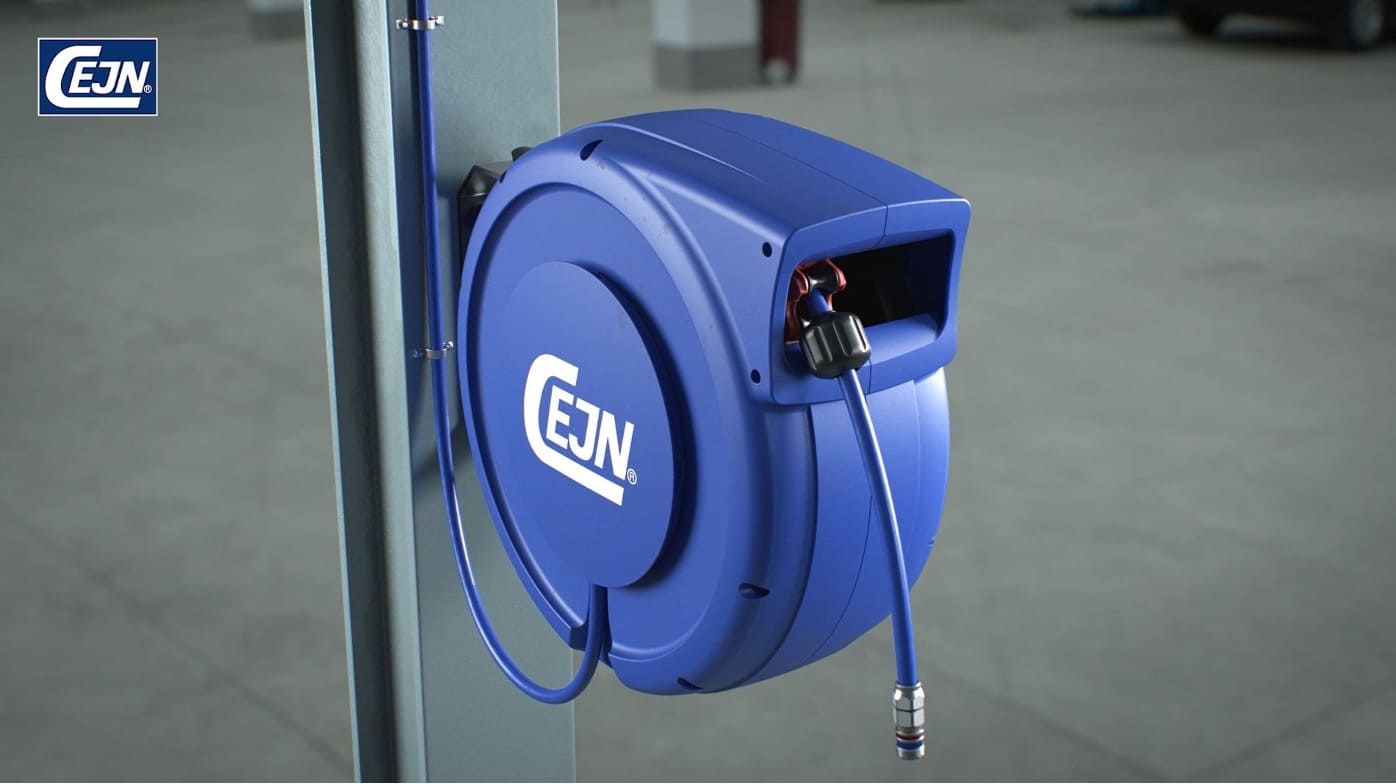

Easy-to-install wall bracket

The hose reel is installed on a wall using the installation bracket. It can easily be fitted or removed from the bracket without using any tools.

Unrestricted flow saves energy

Smart internal design ensures high flow with minimum pressure drop to save energy and increase tool performance.

Accurate hose guiding

The hose guiding ensures that the hose is securely rolled up in the casing without twists or kinks for optimal flow and hose protection.

Multiple options to fit your work needs

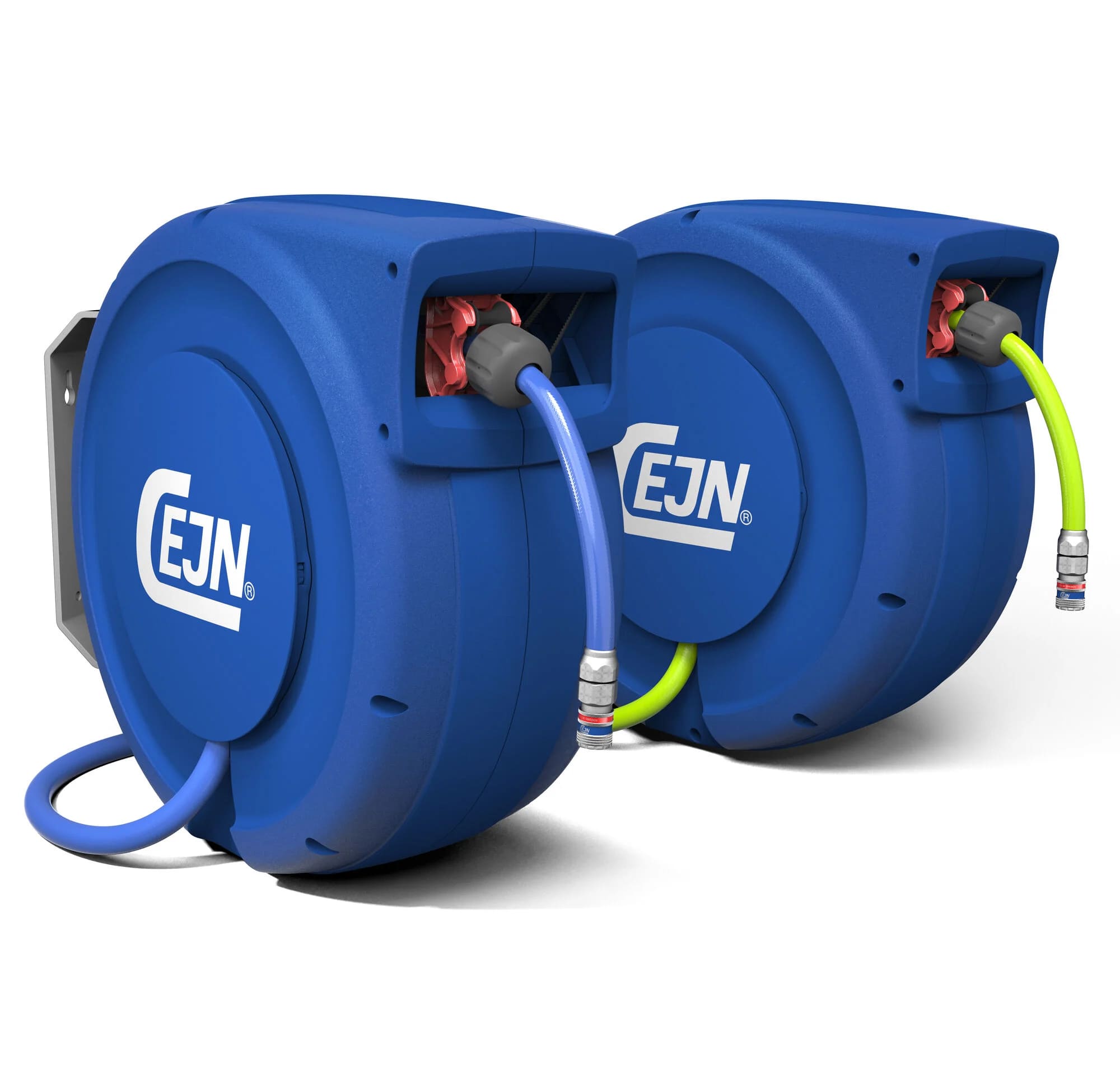

The CEJN SafetyReel G2 combines safety, durability, and flexibility in one reliable solution. Available with hoses in three lengths—20, 25, or 30 meters—you can select the option that best suits your application. The hose reel also comes in different hose colours: standard CEJN blue for a classic appearance or high-visibility green to maximise safety in industrial environments.

For optimal performance and efficiency, complete the setup with your preferred air and fluid guns, such as the 209 air and fluid gun, the multiFLOW air and fluid gun, or the 913 washdown gun.

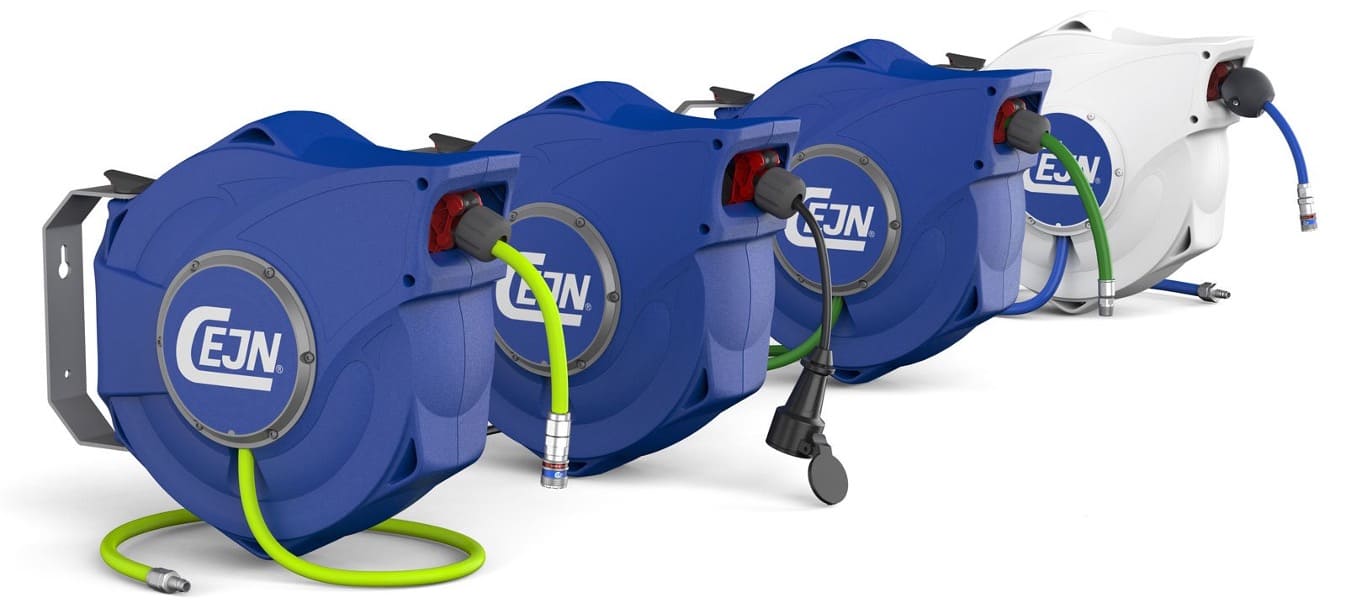

A SafetyReel for every need

CEJN SafetyReel is a premium collection of retractable hose reels and retractable cable reels. Each reel is designed for its specific application, yet they share many of the same high-quality features. Within our wide assortment of hose reels, you’ll find variants suitable for a variety of media: compressed air hose reels, fluids/water hose reels, breathing air hose reels, and electrical cable reels.
